WWW.BillionixLED.com

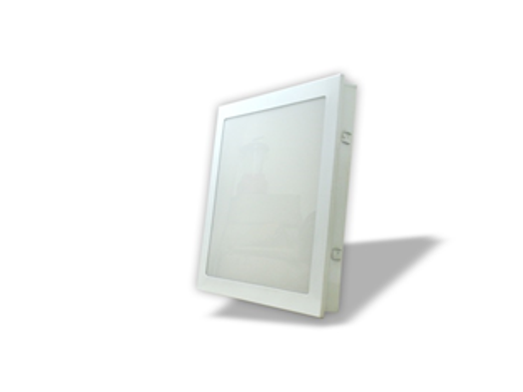

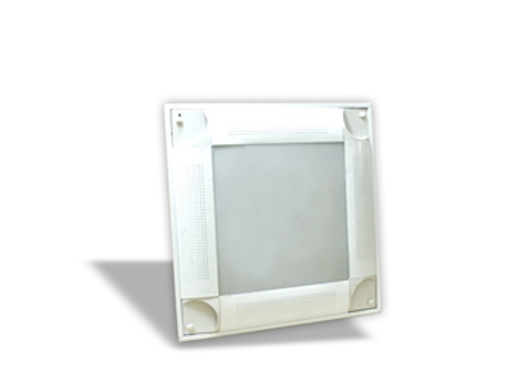

LED DOWNPANELS

Models Available:

1. Description:
SIZE : 600X600 mm
WATTAGE :36 Watt
MODEL No. : PT-PL-101
WARRANTY : 2 YEAR
AC Input voltage Range (V) – 140-300
Operating Frequency Range(Hz)- 50
Number of LED-484
Lumen-9680
LED- OSRAM
Beam angle- 120 Degree
CRI> 80
Working temp. Range- 0-50 Degree C
LED output- cool white/ Warm white

2. Description:
SIZE : 600X600 mm
WATTAGE : 30 Watt
MODEL No. : PT-PL-102
WARRANTY : 2 YEAR
AC Input voltage Range (V) –140-300
Operating Frequency Range(Hz)- 50
Number of LED-441
Lumen-8820
LED- OSRAM
Beam angle- 120 Degree
CRI> 80
Working temp. Range- 0-50 Degree C
LED output- cool white/ Warm white

3. Description:
SIZE : 300X300 mm
WATTAGE : 18 Watt
MODEL No.: PT-PL-103
WARRANTY : 2 YEAR
AC Input voltage Range (V) – 140-300
Operating Frequency Range(Hz)- 50
Number of LED-270
Lumen-2200
LED- OSRAM
Beam angle- 120 Degree
CRI> 80
Working temp. Range- 0-50 Degree C
LED output- cool white/ Warm white


Send Query
